High Purity Certificated Low Cost Low Pressure Oxygen Generation Plant PSA Medical Oxygen Generator for Hospital
- Overview
- Recommended Products

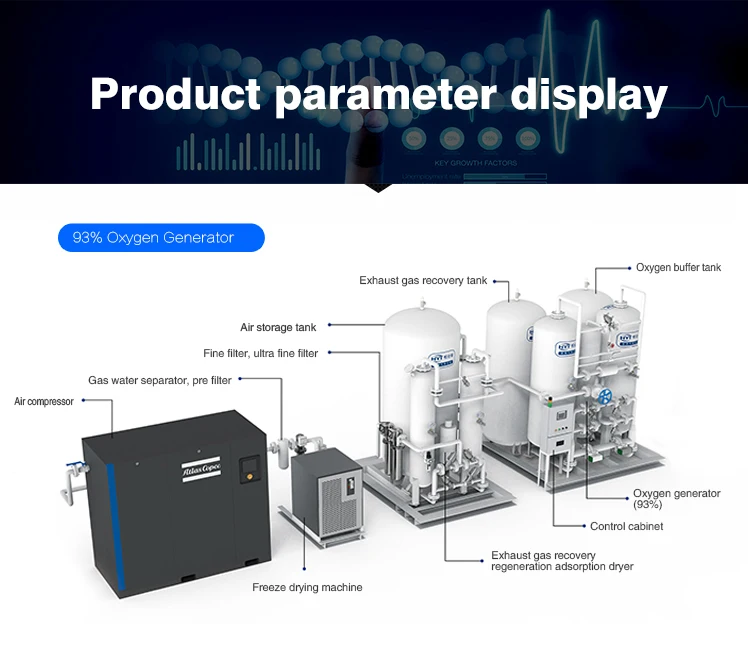

Products Description
Model |
Orygen Purity |
Dxygen Capacity(Nm³/min) |
Air Compressor(KW) |
Suitable Scale(Bed/pec) |
Power(KW) |
MPS93-2 |
≥93 |
5 |
7.5 |
150 |
8.0 |
MPS93-10 |
≥93 |
10 |
11 |
300 |
12 |
MPS93-50 |
≥93 |
50 |
45 |
1500 |
48 |
MPS93-120 |
≥93 |
120 |
110 |
3600 |
115 |
Project Cases
Fields of application
Product packaging
Company Profile
FAQ
Q: What the oxygen purity of this machine can be achieved?
This is our high purity model,it is can be produce 93%～96% oxygen purity.
Q:The more information you kindly tell us,the better professional service we provide for you !
a. What is the gas source you currently use?(cylinder/dewar/liquid gas/other)
b. Gas consumption?(Nm3/h,L/min)
c. Required gas pressure?
d. Required gas quality?(eg:Maximum oxygen percentage, Maximum moisture content, etc)
Q: Oxygen equipment is safety?
Definitely!Nitrogen/Oxygen generator is a kind of air separation device under normal temperature,
it can supply stable and continuous nitrogen/oxygen gas, it doesn’t need any high-
pressure cylinders and liquid cylinders which have potentially dangerous; so we don’t need to worry about no-
timely supply due to special circumstance.
Q: The producing nitrogen/oxygen is gaseous state or liquid state?
Our nitrogen/oxygen equipment use PSA air separation technology under normal temperature,with no-
low temperature operation,the temperature of nitrogen/oxygen product is close to ambient temperature.
Q: How long is the nitrogen/oxygen equipment service life? Generally speaking,industrial equipment service life is depend on daily maintenance. under normal maintenance,our equipment can well running for more than 10 years.
Q: How is the maintenance time of oxygen equipment?
For Air purification module: the primary filters need to replace after 4000h normal operation; precision,extra-
precision filters need to replace after 8000h,12000h normal operation; valve seal seal for 16000h;other filters depend on actual operation.
